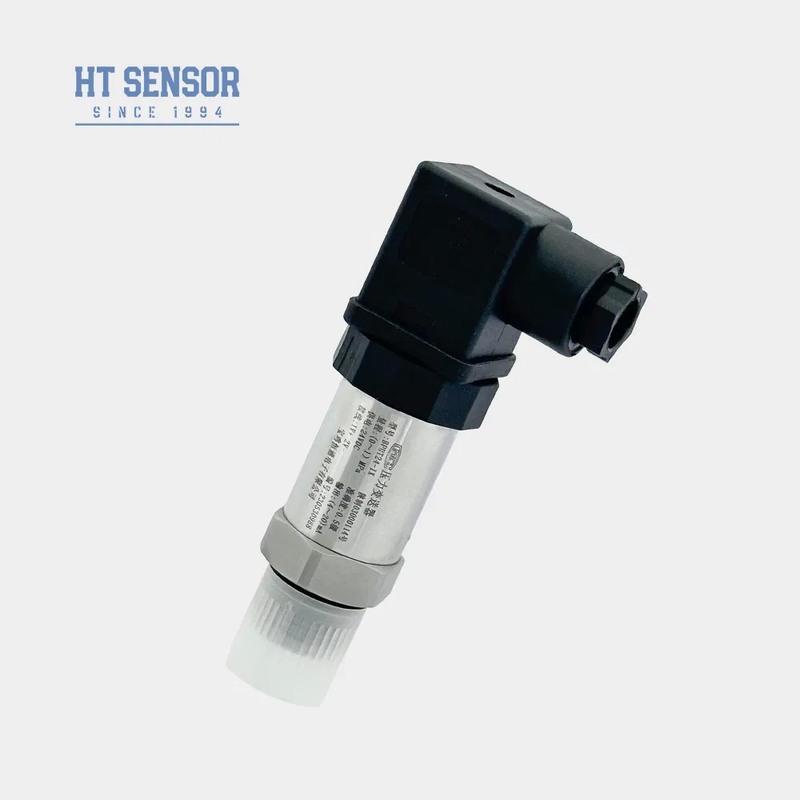

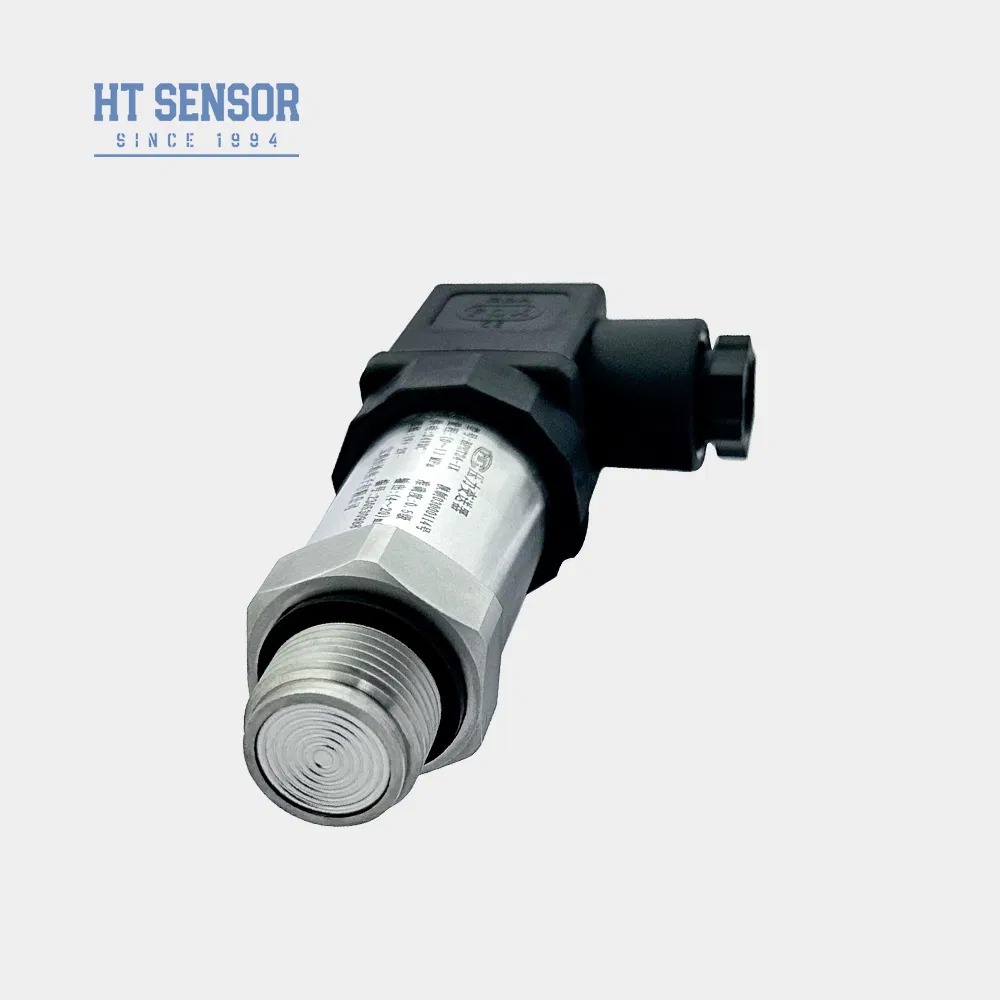

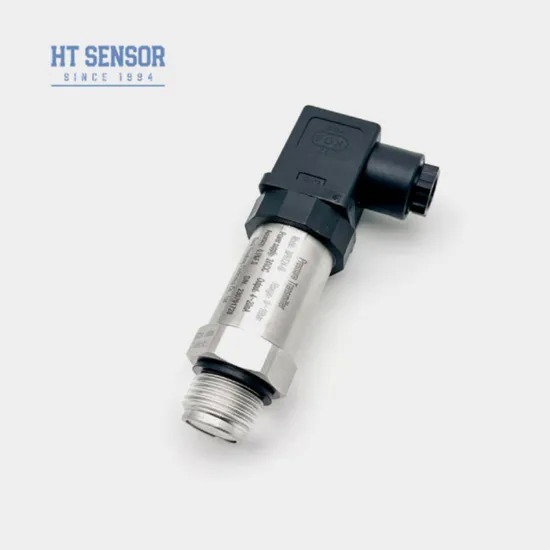

BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor

BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor
BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor
المعلومات الأساسية
إصدار الشهادات: CE, RoHS
الحد الأدنى لكمية: 1
الأسعار: 45
افضل سعر ﺎﺘﺼﻟ ﺍﻶﻧ
معلومات تفصيلية
رقم الموديل: بي بي اتش تي24 قياس وسيط: الهواء والسائل
درجة الدقة: 0.5 ٪ نطاق الضغط: -100 كيلو باسكال...0 كيلو باسكال ~10 كيلو باسكال...100 ميجا باسكال
تصنيف الملكية الفكرية: IP65 حسب الطلب: حسب الطلب
نوع الضغط: الضغط المقياسي، الضغط المطلق، الضغط المغلق المواد السكنية: 304
تصنيف الحماية: IP65 وزن: ~ 0.3 كجم
حزمة النقل: التعبئة القياسية للتصدير مع الكرتون مواصفة: مستشعر ضغط السيليكون
علامة تجارية: HTsensor أصل: باوجي ، الصين
رمز النظام المنسق: 9026201090 القدرة الإنتاجية: 50000 قطعة / السنة
إبراز:

flush diaphragm pressure sensor,BPHT24 level sensor transmitter,pressure transmitter with diaphragm

,

BPHT24 level sensor transmitter

,

pressure transmitter with diaphragm

منتوج وصف

BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor
BPHT24 Pressure Transmitter


Introduction:
BPHT24 pressure transmitter utilizes the HT series flat diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and
accurate pressure measurements in hygienic environments.
BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 0
Product  Features:
  1. Various pressure interface options
  2. Designed for hygienic applications to prevent medium scaling
  3. High accuracy with a fully stainless steel structure
  4. Easy to clean.
Applications:
  1. Suitable for measuring non-corrosive gases and liquids with 316L
  2. Ideal for environmental protection and chemical industries
  3. Used in the marine and aviation industries
  4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
Performance Parameters
Measurement Range 0~35Kpa…~35MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 1BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 2
  1.

Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA
3 wire
0/1~5V
0/1~10V
0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire

Type Hirschmann
Dimension BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 3


BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 4
Selection Examples
BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 5


Ordering tips
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are  reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
Order Guide
BPHT24 Pressure Transmitter
  Code Outline Construction

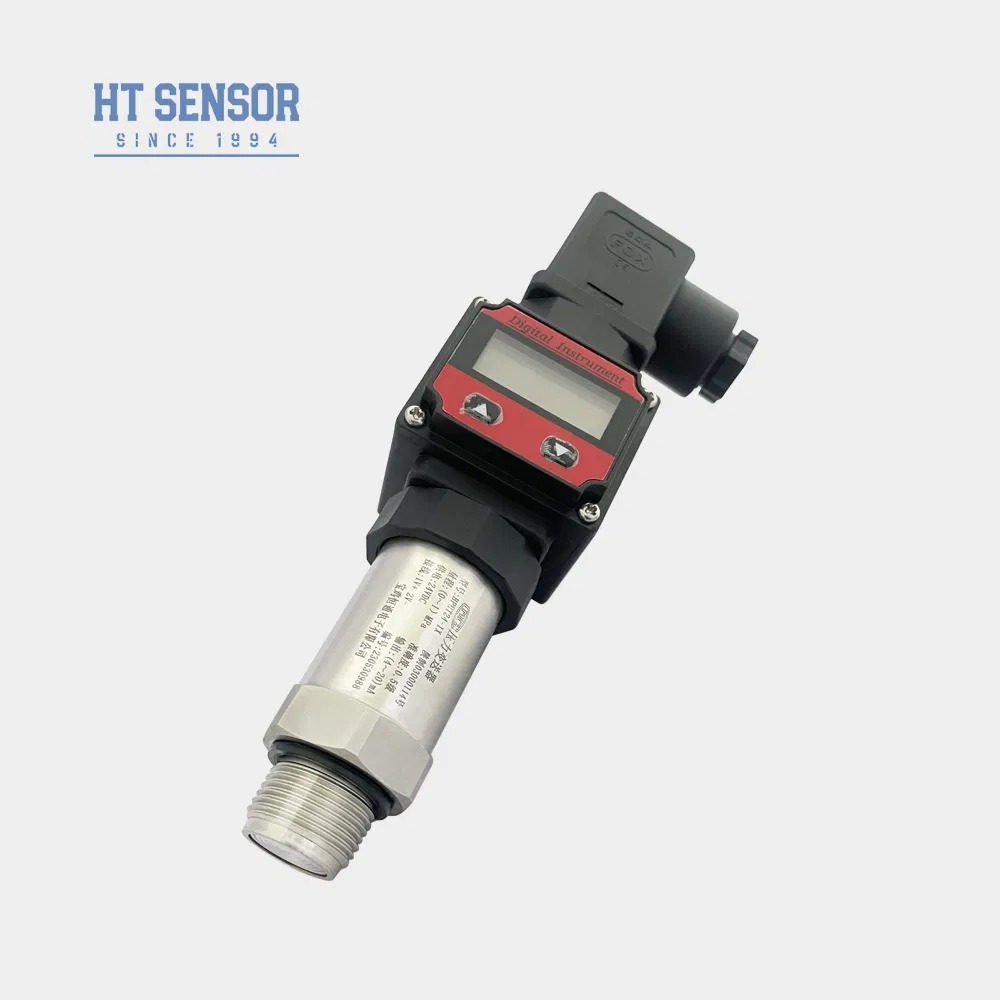

IX      Display Pressure Transmitter  IIC/III Industrial General/ Display Pressure Transmitter
  Measurement Range 0~35Kpa…~35MPa
(0-X)Kpa or MPa X: Indicates the Actual Measuring Range
  Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
  Code Output Signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
  Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 1/2NPT
  Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
  Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure


Company
BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 6BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 7BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 8BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 9BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 10BPHT24 Flush Diaphraqm Pressure Sensor Transmitter level sensor 11
Q&A
1. Q: What are the features of your pressure sensor transmitters?
     A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
     A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
     A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
     A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
     A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
     A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
