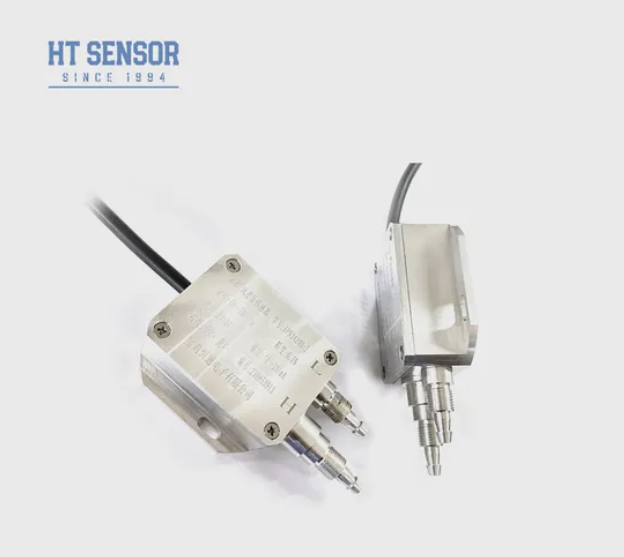

BP93420D-IIIA Differential Pressure Transmitter with 0~62.2kPa Measurement Span and -40-100 ℃ Medium Temperature Range
Product Details
| حماية: | IP65 | مواد الاستشعار: | الفولاذ المقاوم للصدأ 316 |
|---|---|---|---|
| درجة حرارة متوسطة: | - 40-100 ℃ | وسائط: | تدفق السائل أو الغاز أو البخار |
| ميزات المنتج: | سلامة جيدة، والقدرة على التكيف قوية | بروتوكول الاتصال: | هارت |
| فترة القياس: | 0 ~ 62.2kpa | مودل: | BP93420D-IIIA |
| إبراز |
BP93420D-IIIA Differential Pressure Transmitter,0~62.2kPa Measurement Span Pressure Transducer,-40-100 ℃ Medium Temperature Level Sensor Transmitter,0~62.2kPa Measurement Span Pressure Transducer,-40-100 ℃ Medium Temperature Level Sensor Transmitter |
||
Product Description
- Stainless steel structural design for compact size and easy installation
- Strict temperature compensation and aging screening ensure stable, reliable performance
- Flexible electrical interface options: plug-in or direct wiring
- Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology industries
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Pipeline and furnace chamber pressure measurement
| Parameter | Specification |
|---|---|
| Measurement Range | 0-500Pa...~200kPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static Pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0.5~4.5V |
5VDC |
- Verify compatibility between the measured medium and the product's contacting parts
- For reliable operation, install a three-valve manifold between the measurement point and transmitter to ensure slow, uniform pressure application
- Position pressure interfaces horizontally to minimize installation location impact
- Specify any special requirements (vibration, impact, EMI/RFI) when ordering
