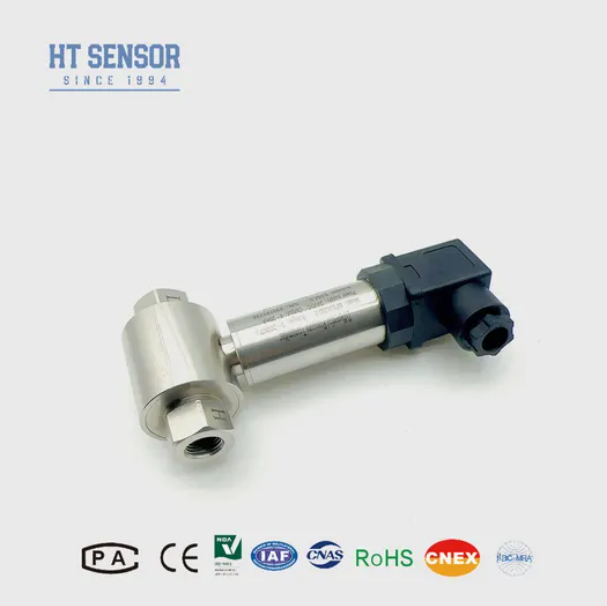

High Accuracy ±0.1% Differential Pressure Transmitter with Wide Temperature Range -40-85℃ and 300% Overload Pressure
Product Details
| أنواع القياس: | الضغط التفاضلي والضغط الثابت | دقة: | ± 0.1 ٪ من span |
|---|---|---|---|
| درجة الحرارة المحيطة: | - 40-85 درجة مئوية | وزن: | 0.5 كجم |
| الضغط الزائد: | 300%FS | تشغيل درجة الحرارة: | -20 ~ 150 ℃ |
| نوع الضغط: | الضغط التفاضلي | الموصل الكهربائي: | كتلة الطرفية ، الكابل |
| درجة حرارة العمل: | -10 ~ 70 درجة | الرطوبة النسبية: | 5 ~ 98٪ ر |
| ميناء الضغط: | G1 / 4 و G1 / 2 1 / 4NPT و 1 / 2NPT وغيرها | الجهد توريد: | 24 (ت) |
| نسبة الهبوط ل: | 100: 1 | نموذج لا: | HT3351 |
| المواد السكنية: | الألومنيوم | ||
| إبراز |
High Accuracy Differential Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter |
||
Product Description
- Stainless steel construction for durability and easy installation
- Rigorous temperature compensation and aging screening ensure stable performance
- Flexible electrical interface options: plug-in or direct wiring
- Differential pressure measurement for gases/liquids in pipelines (petroleum, chemical, power, hydrology)
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation
- Pipeline and furnace chamber pressure measurement
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -30°C~80°C |
| Housing Material | 304, 316L stainless steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0.5~4.5V | 5VDC |
- Verify medium compatibility with product materials before selection
- Recommended installation with three-valve manifold for pressure regulation
- Position pressure interfaces horizontally for optimal performance
- Specify special requirements (vibration, EMI/RFI protection) when ordering
