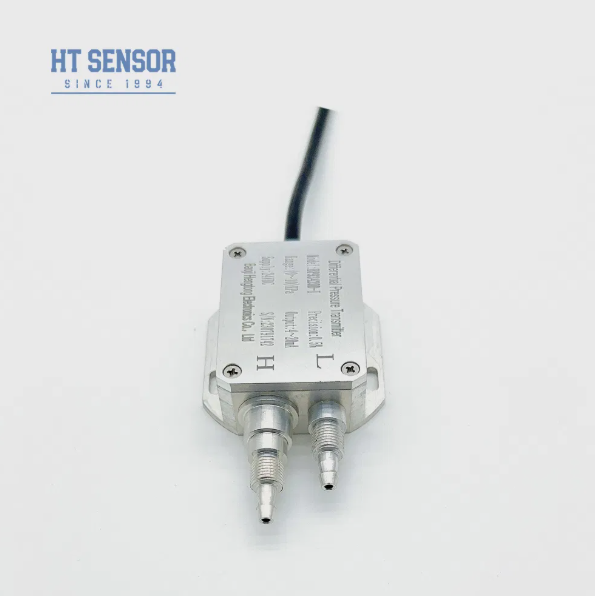

Lightweight Micro Differential Pressure Transmitter with DIN Rail and Wall Mount Options for Non-Corrosive Gas Applications
Product Details
| طريقة التثبيت: | DIN السكك الحديدية أو جدار الجدار | موصل كهربائي: | كابل، موصل واختياري |
|---|---|---|---|
| ميناء: | ميناء شنتشن | درجة السلامة: | IP65 |
| فئة الحماية: | IP65 ، IP67 | درجة حرارة التشغيل: | -30 ~ 80 ℃ |
| مزود الطاقة: | 24 VDC | الضغط الاسمي: | (0.25-42) MPA |
| بروتوكول الاتصال: | هارت | نوع المستشعر: | تسعية |
| إبراز |
Lightweight Differential Pressure Transmitter,DIN Rail Micro Differential Pressure Transmitter,Wall Mount Differential Pressure Transmitter,DIN Rail Micro Differential Pressure Transmitter,Wall Mount Differential Pressure Transmitter |
||
Product Description
- Choice of aluminum or plastic casing design
- Lightweight and easy to install
- Rigorously tested for high and low-temperature performance
- High accuracy measurement
- Boiler and mining industries
- Brewing and power industries
- Detection of small differential pressures in non-corrosive gases
| Parameter | Specification |
|---|---|
| Measurement Range | 0-500Pa, 0-1KPa, 0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa, 0-200KPa |
| Pressure Type | Differential Pressure |
| Static Pressure | 2 times of the rated range |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typical), ±1% (Maximum) |
| Zero Temperature Drift | ±2.5%F.S/ºC (Typical) ±3%F.S/ºC (Maximum) |
| Span Temperature Drift | ±2.5%F.S/ºC (Typical) ±3%F.S/ºC (Maximum) |
| Compensation Temperature | 0-50ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Housing Material | Aluminum alloy, Plastic |
| Relative Humidity | 0-80% |
| Pressure Connection | φ6 air nozzle or customizable |
| Protection Rating | IP65 |
| Cable Material | Polyethylene |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure the measured medium is compatible with product materials
- Apply pressure slowly and evenly to both chambers for reliable operation
- Install with pressure interfaces horizontally positioned for optimal performance
- Specify any special requirements (vibration, EMI, etc.) when ordering
| Code | Option |
|---|---|
| I | Differential Pressure Transmitter |
| Measurement Range | 0-500Pa, 0-1KPa, 0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa, 0-200KPa |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| D | Differential Pressure Type |
| 01 | Aluminum alloy Housing |
| 02 | Plastic Housing |
