| إصدار الشهادات: | CE,RoHS |
|---|---|
| الحد الأدنى لكمية: | 1 |
| الأسعار: | 50 |
| رقم النموذج: | BH93420-III | إشارة الإخراج: | نوع التناظرية |
|---|---|---|---|
| نوع التحقيق: | نوع التحقيق | تصنيف IP: | IP68 |
| وزن صافي: | 0.3 كجم | مادة الحجاب الحاجز: | 316L من الفولاذ المقاوم للصدأ |
| دقة: | 0.25٪، 0.5٪ | مادة الكابل: | PE ، PU ، PTFE |
| نطاق القياس: | 0 ~ 10m ... 400m | نوع الضغط: | الضغط المقياسي، الضغط المطلق، الضغط المغلق |
| سعة التحميل الزائد: | ≤ 2x النطاق المقنن | درجة حرارة التشغيل: | -20~80 درجة مئوية |
| درجة حرارة التخزين: | -30 ~ 100 درجة مئوية | المواد السكنية: | يلقي الألمنيوم ، 1CR18NI9TI |
| تصنيف مقاوم للانفجار: | إكسياIICT6 | ||
| إبراز: | Water Level Transmitter with PTFE cable,IP68 Water Level Transmitter,High accuracy Water Level Transmitter,IP68 Water Level Transmitter,High accuracy Water Level Transmitter |
||

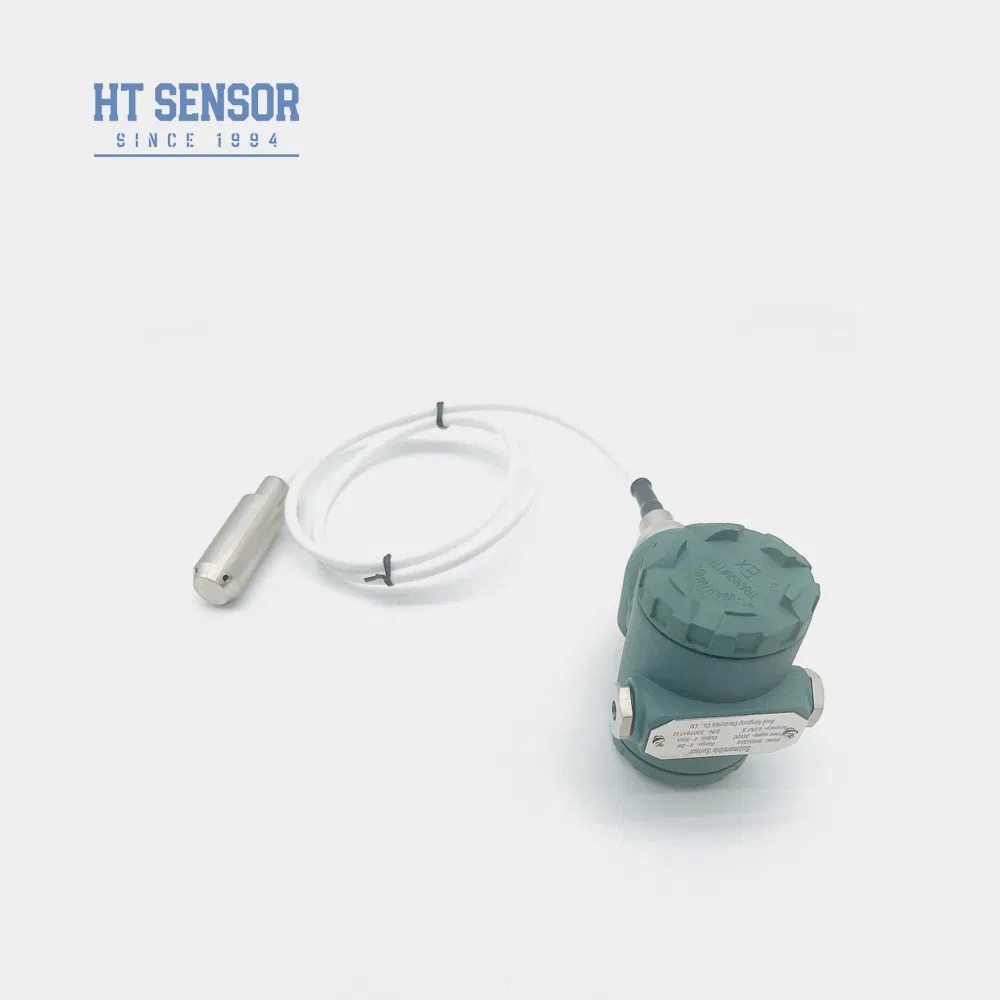

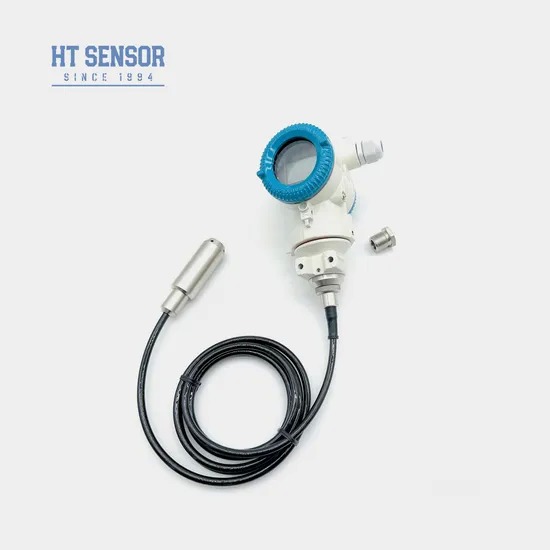

The BH93420-III water level transmitter features a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure (directly related to water level) and converts it into standard signal output using amplification circuitry, establishing a linear relationship between output signal and liquid level for precise measurement.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Code | Description |
|---|---|
| BH93420 | Liquid level transmitter |
| III | 2088 housing |
| D1 | 24VDC power supply |
| S1 | 4~20mADC output |
| S2 | RS485 output |
| B5 | 2088 with display |
| B6 | 3051A |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PE cable |
| C2 | PU cable |
| C3 | PTFE cable |
