| إصدار الشهادات: | CE, RoHS, ISO9001 |
|---|---|
| الحد الأدنى لكمية: | 1 |
| الأسعار: | 30 |
| رقم النموذج: | BPHT24-IX | قياس وسيط: | الهواء والغاز والسائل |
|---|---|---|---|
| درجة الدقة: | 0.5 جرام | نطاق الضغط: | 0kpa~35kpa...20MPa |
| تصنيف IP: | IP65 | نوع الضغط: | الضغط المقياسي، الضغط المطلق، الضغط المغلق |
| المواد السكنية: | 316L | وزن: | 0.2 كجم |
| الحمل الزائد: | ≤ 1.5 مرة من النطاق المقدر | دقة @ 25 درجة مئوية: | ± 0.25 ٪ (نموذجي) ± 0.5 ٪ (الحد الأقصى) |
| استقرار على المدى الطويل: | ± 0.1 ٪ fs/year (typ.) ± 0.2 ٪ fs/year (max.) | درجة حرارة التشغيل: | -20 درجة مئوية ~ 80 درجة مئوية |
| درجة حرارة التخزين: | -40 درجة مئوية ~ 120 درجة مئوية | مادة الحجاب الحاجز: | 316L |
| مقاومة العزل: | 100mΩ 100VDC | ||
| إبراز: | BPHT24-IX pressure transmitter sensor,industrial pressure sensor IP65,pressure transmitter 0.5G accuracy,industrial pressure sensor IP65,pressure transmitter 0.5G accuracy |
||

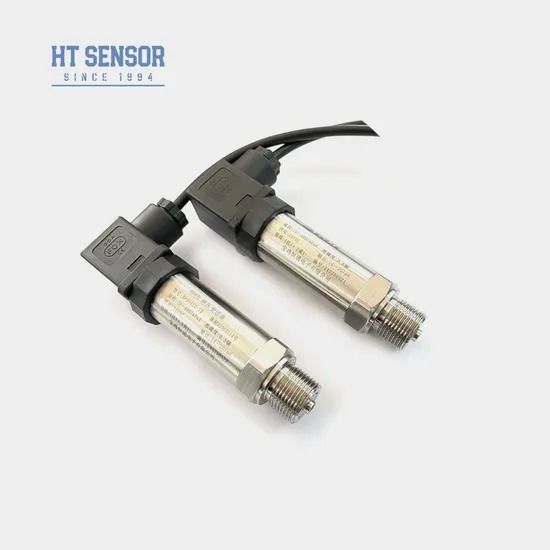

The BPHT24IX pressure transmitter utilizes the HT series flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
