| إصدار الشهادات: | CE,RoHS |
|---|---|
| الحد الأدنى لكمية: | 1 |
| الأسعار: | 50 |
| رقم النموذج: | BH93420-III | إشارة الإخراج: | نوع التناظرية |
|---|---|---|---|
| نوع التحقيق: | نوع التحقيق | تصنيف IP: | IP68 |
| وزن صافي: | 0.3 كجم | مادة الحجاب الحاجز: | 316L من الفولاذ المقاوم للصدأ |
| دقة: | 0.25٪، 0.5٪ | مادة الكابل: | بي، بو، بتف |
| نطاق القياس: | 0 ~ 10m ... 400m | نوع الضغط: | الضغط المقياسي، الضغط المطلق، الضغط المغلق |
| الحمل الزائد: | ≤ 2x النطاق المقنن | درجة حرارة التشغيل: | -20~80 درجة مئوية |
| درجة حرارة التخزين: | -30 ~ 100 درجة مئوية | المواد السكنية: | يلقي الألمنيوم ، 1CR18NI9TI |
| تصنيف مقاوم للانفجار: | إكسياIICT6 | ||
| إبراز: | IP68 water level transmitter,high accuracy water level sensor,0.25% accuracy level transmitter,high accuracy water level sensor,0.25% accuracy level transmitter |
||

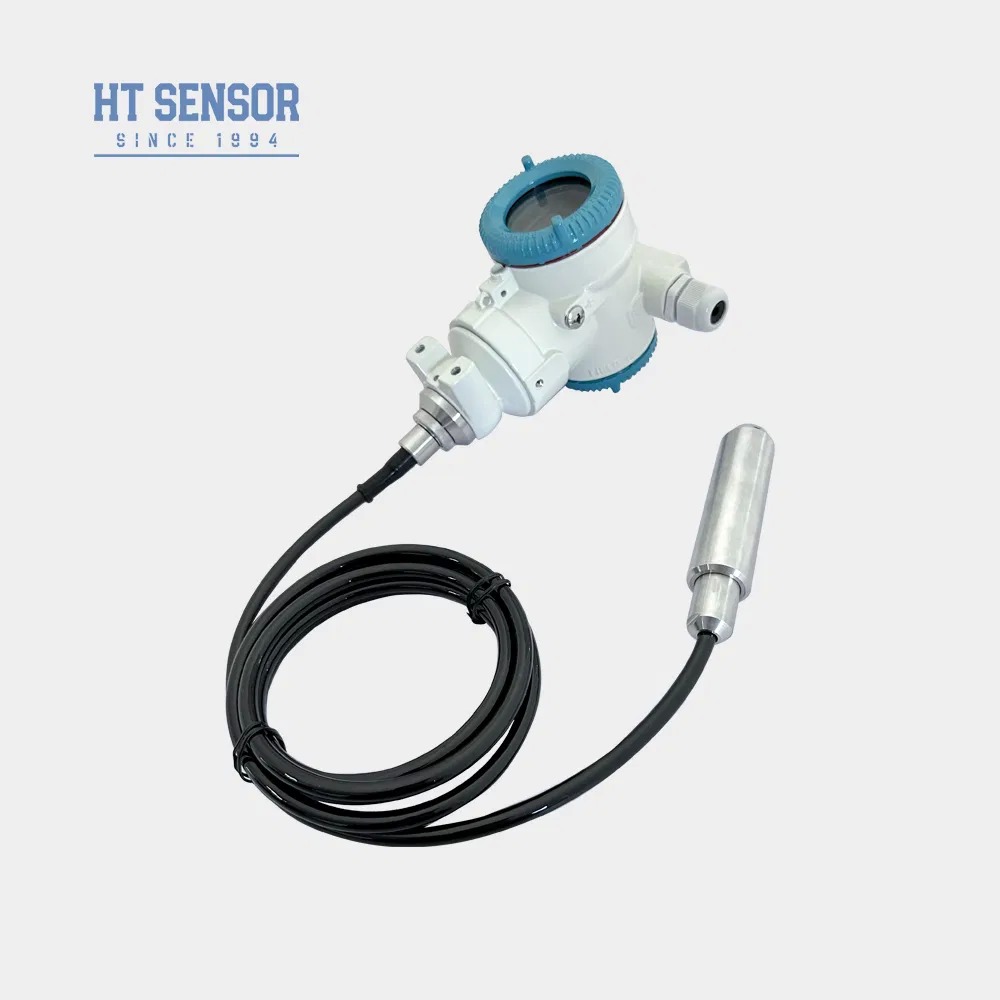

The BH93420-III water level transmitter features a highly precise Piezoresistive diffused silicon pressure sensor for signal measurement. It measures static pressure (directly related to water level) and converts it into a standard output signal through amplification circuitry, establishing a linear relationship for precise water level measurement.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
A: 5-8 working days for standard models. Customized products may vary.
A: Competitive pricing with bulk order and long-term partnership discounts available.
A: 24-month warranty with 24-hour response time for support queries. Remote assistance available.
