| إصدار الشهادات: | CE, RoHS |
|---|---|
| الحد الأدنى لكمية: | 1 |
| الأسعار: | 15 |
| رقم النموذج: | بي بي 156 | قياس وسيط: | الغاز |
|---|---|---|---|
| درجة الدقة: | 0.2 جم | نطاق الضغط: | 0kpa~10kpa...5MPa |
| تصنيف IP: | IP65 | نوع الضغط: | الضغط المقياسي، الضغط المطلق، الضغط المغلق |
| المواد السكنية: | 316L | وزن: | 0.1 كجم |
| مادة الحجاب الحاجز: | 316L | درجة حرارة التشغيل: | -20 درجة مئوية ~ 80 درجة مئوية |
| درجة حرارة التخزين: | -40 درجة مئوية ~ 120 درجة مئوية | مقاومة الاهتزاز: | 10g ، 55hz ~ 2khz |
| مقاومة العزل: | 100mΩ 100VDC | تصنيف مقاوم للانفجار: | السابق ديسيبل IIC T6 جيجابايت |
| استجابة التردد: | 2.4 كيلو هرتز | ||
| إبراز: | BP156 air compressor pressure transmitter,0.2G accuracy pressure sensor,IP65 industrial pressure transmitter,0.2G accuracy pressure sensor,IP65 industrial pressure transmitter |
||

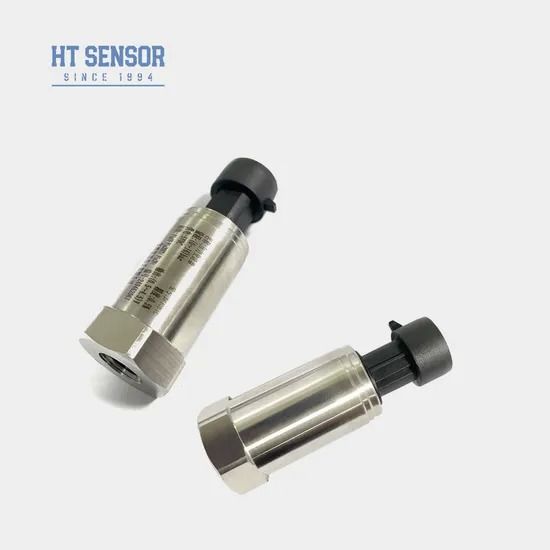

The BP156 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Featuring advanced technology and a high-performance transmitter circuit, this compact device offers excellent moisture resistance and anti-electromagnetic interference capabilities.
| Measurement Range | 0kPa ~ 10kPa...5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
Our transmitters offer high precision, durability, and excellent performance. Customization options are available to meet specific requirements.
Yes, our engineering team can develop customized solutions. We provide comprehensive OEM and ODM services.
Our facilities can produce up to 30,000 units monthly. For large orders, please contact our sales team for scheduling.
Standard models ship in 5-8 working days. Custom products may require additional time.
