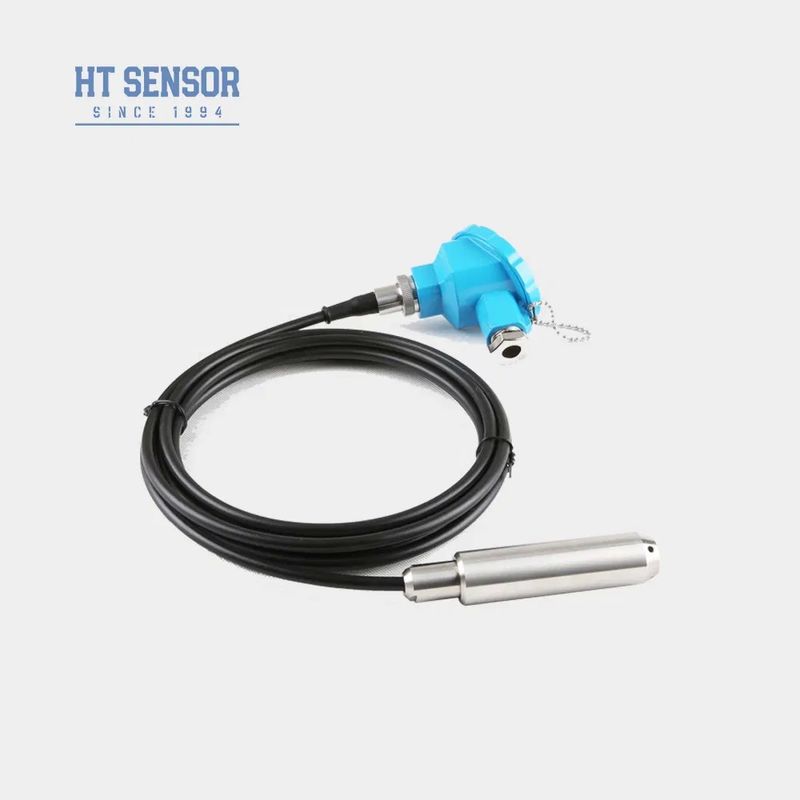

BH93420-I Water Level Transmitter 4-20mA Output IP68 Stainless Steel
Product Details
| رقم النموذج: | BH93420-I | إشارة الإخراج: | 4-20mA أو RS485 |
|---|---|---|---|
| تصنيف IP: | IP68 | وزن صافي: | 0.3 كجم |
| مادة الحجاب الحاجز: | 316L من الفولاذ المقاوم للصدأ | استقرار على المدى الطويل: | +-0.2% في السنة |
| درجة حرارة التشغيل.: | -20~80 درجة مئوية | نطاق القياس: | 0 ~ 10m ... 400m |
| دقة: | ± 0.25 ٪ (TYP.) ± 0.5 ٪ (كحد أقصى) | التكرار: | ± 0.03 ٪ (TYP.) ± 0.05 ٪ FS (كحد أقصى) |
| التباطؤ: | ± 0.03 ٪ (TYP.) ± 0.05 ٪ FS (كحد أقصى) | صفر نقطة الانجراف: | ± 1.5 ٪ fs (typ.) ± 2 ٪ fs (كحد أقصى) |
| الانجراف واسع النطاق: | ± 1.5 ٪ F.SR (TYP.) ± 2 ٪ FS (كحد أقصى) | تعويض مؤقت: | 0-50 درجة مئوية (0-1M. 0-2M) ؛ 0-70 درجة مئوية |
| تصنيف مقاوم للانفجار: | إكسياIICT6 | ||
| إبراز |
4-20mA water level transmitter,IP68 stainless steel water sensor,water level transmitter with warranty,IP68 stainless steel water sensor,water level transmitter with warranty |
||
Product Description

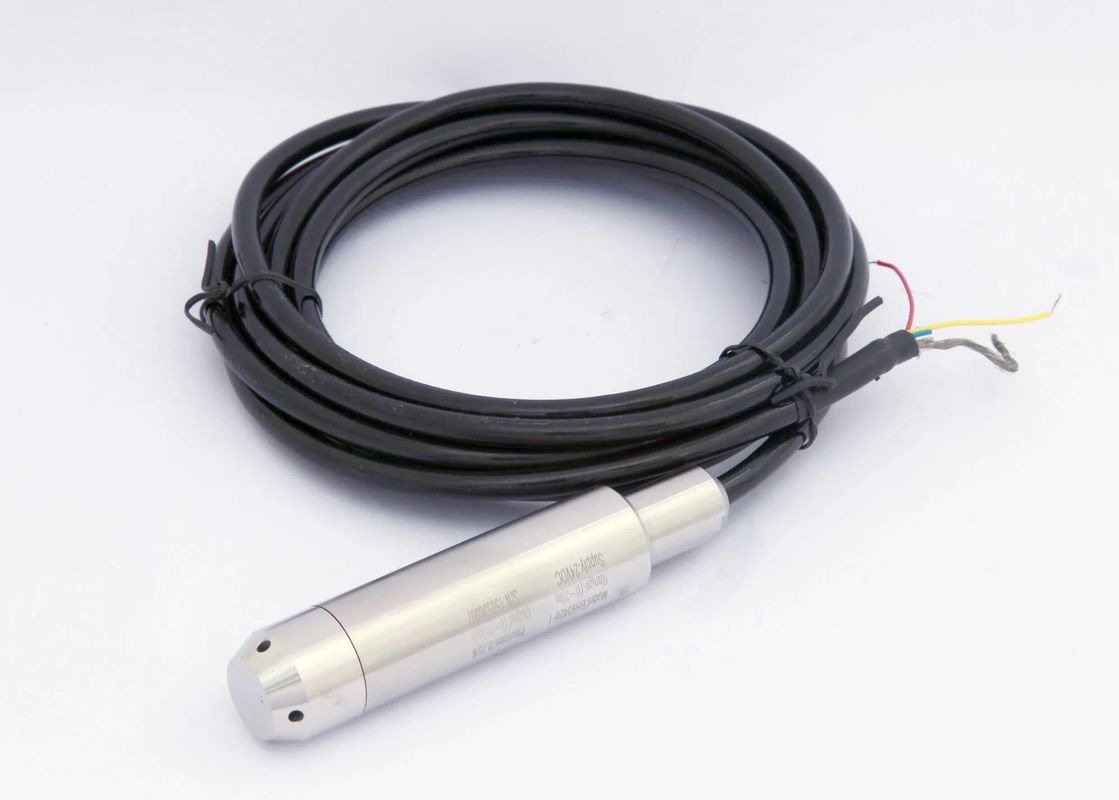

The BH93420-I is a water level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, the sensing part immersed in water is completely sealed with stainless steel for excellent waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and stability.
- Full stainless steel housing for various testing environments
- Immersion-type probe measurement for easy installation
- Diverse output signal options
- Explosion-proof marking: ExiaIICT6
- High protection rate: IP68
- PE or PU cable options
- Compatible with 316LSS and non-corrosive liquids
- Monitoring water levels in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
| Measurement Range | 0~10m...400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure the measured medium is compatible with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference, provide details
- Install lightning protection devices and ensure proper grounding
| Code | Option |
|---|---|
| BH93420 | Base Model |
| I | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PE Cable |
| C2 | PU Cable |
